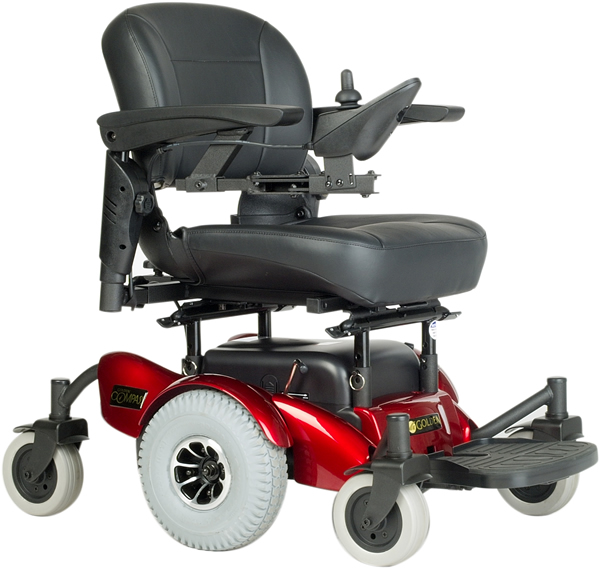

Golden Compass Electric Wheelchair

Customize & Add to Cart

$5,295.00

$3,699.00

Charcoal Captain's Seat

Tan Captain's Seat

Proflex Seat

click on image
to enlarge

Warranty

What makes the Golden Compass Electric Wheelchair different? The Compass is Golden's mid-wheel drive electric wheelchair built with more serious users in mind.

What are the Compass's strong points? Mid-wheel drive with extremely small turning radius, full-size front and rear casters, adjustable height 4 post seating system, 3 way adjustable foot rests.

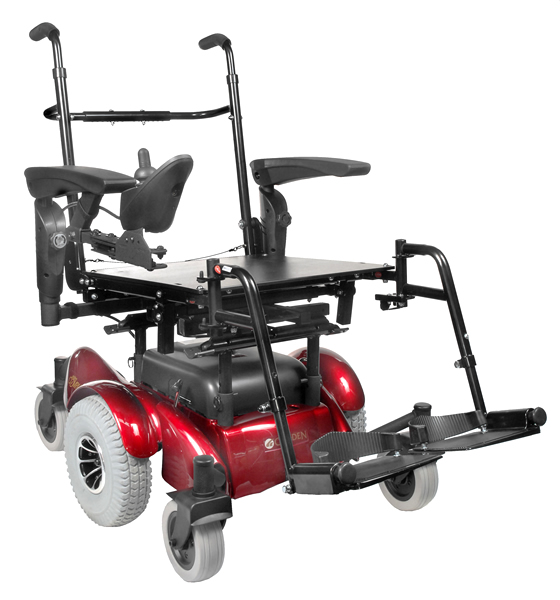

What else should I know about the Golden Compass Electric Wheelchair? For the ultimate in flexibility a Pro-Flex seat is recommended - however, this is just the seating frame and cushions will need to be purchased to suit your situation.

Manufacturer quote: "the ultimate in maneuverability and stability"

Product Specs

Weight Capacity
300 lb
Overall Length
38.5"
Overall Width
24.5"
Range
20 mi
Top Speed
5 mph
Turning Radius
19"
Weight, Total
211 lb
Weight, Base
88 lb
Weight, Seat
46 lb
Weight, Batteries
77 lb
Minimum Seat Height
18"
Maximum Seat Height
23"
Drive Wheels
10" Flat Free
Caster Wheels
6" Flat Free
Controller Type
Dynamic A-Series, 50 Amp Integral
Charger Type
Off-board
Battery Type
U-1 x 2 or 22NF x 2

Product Options Available

has standard with round 3-pin “XLR” connector
has high 2.5 Amp output for 24-Volt Gel and AGM type batteries
powers from car's cigarette lighter
4-stage smart charge for fast charging and longer battery life

Color	Candy Apple Red	$0.00
Color	Blue	$0.00
Color	Onyx	$0.00
Color	Hunter Green	$0.00

Batteries	U-1 Batteries (set of 2)	$0.00

Seating Upgrades	Black Vinyl Stadium Seat, 18" W x 16" D	$0.00
Seating Upgrades	Captain's Chair (choose size below)	$158.40
Seating Upgrades	High Back Captain's Chair (choose size below)	$158.40
Seating Upgrades	Pan Seat (choose size below)	$158.40
Seating Upgrades	Proflex Seating Frame (choose size below)	$360.00

Seat Color	N/A for standard seating & Proflex seating	$0.00
Seat Color	Charcoal Vinyl	$0.00
Seat Color	Sand Vinyl	$0.00
Seat Color	Two-Tone Charcoal Vinyl	$0.00
Seat Color	Two-Tone Sand Vinyl	$0.00

Seat Width	N/A for standard seating	$0.00
Seat Width	16"	$0.00
Seat Width	18"	$0.00
Seat Width	20"	$0.00
Seat Width	22"	$0.00
Seat Width	24"	$0.00

Seat Depth	N/A for standard seating	$0.00
Seat Depth	16"	$0.00
Seat Depth	18"	$0.00
Seat Depth	20"	$0.00

Leg Rests & Supports	Adjustable Footplate	$0.00
Leg Rests & Supports	Elevating Leg Rests	$256.00
Leg Rests & Supports	Swing Away Footrests	$168.00
Leg Rests & Supports	Amputee Support, 8" W x 10" L	$264.00
Leg Rests & Supports	Ampute Support, 10" W x 10" L	$264.00

Accessories	Lap Belt	$0.00
Accessories	Cane Holder Tube	$32.00
Accessories	Forearm Crutch Holder	$56.00
Accessories	Power Chair Cover	$78.40
Accessories	Deluxe Pack N' Go	$78.40
Accessories	Flag	$12.80

Accessories Requiring a Rear Mounting Bracket	Rear Mounting Bracket	$25.60
Accessories Requiring a Rear Mounting Bracket	Rear Basket	$48.00
Accessories Requiring a Rear Mounting Bracket	Walker Holder	$70.40
Accessories Requiring a Rear Mounting Bracket	Oxygen Tank Holder	$88.00
Accessories Requiring a Rear Mounting Bracket	Quad Cane Holder	$57.60

Service & Delivery	Free 1 Year In-Home Parts & Service Coverage	$0.00
Service & Delivery	Free In-Home Delivery & Setup	$0.00
