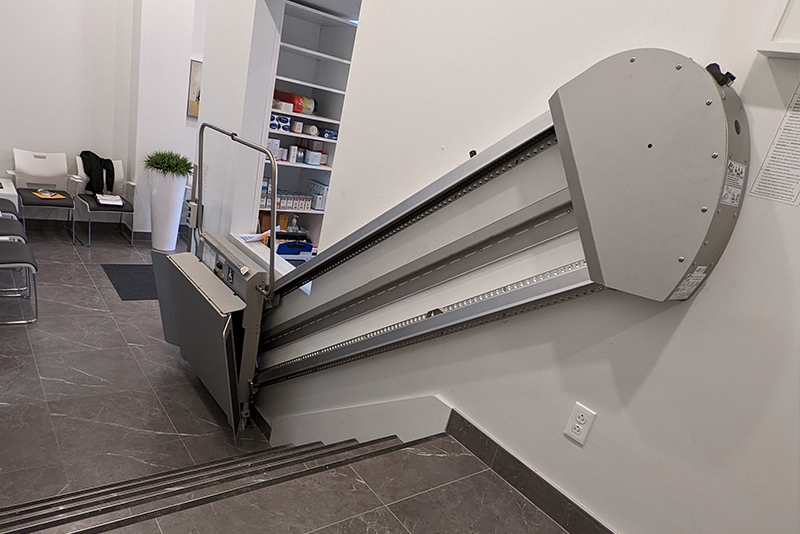

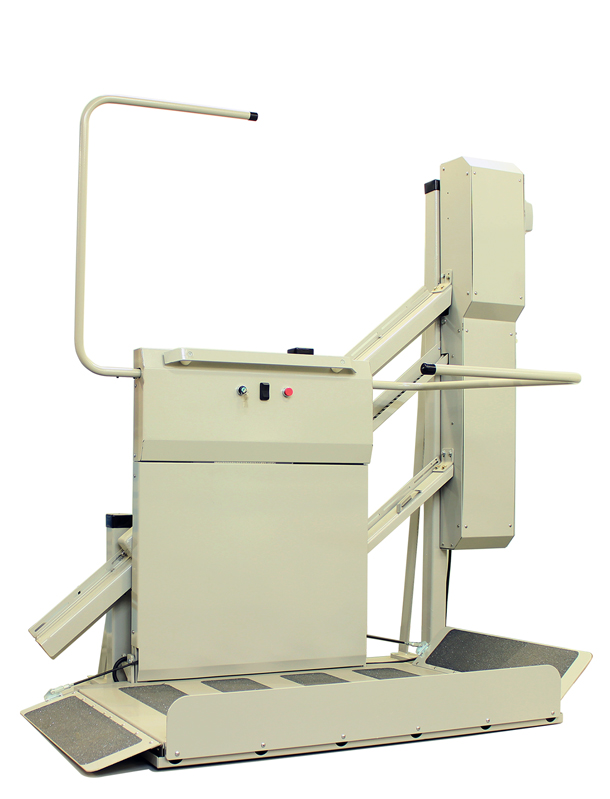

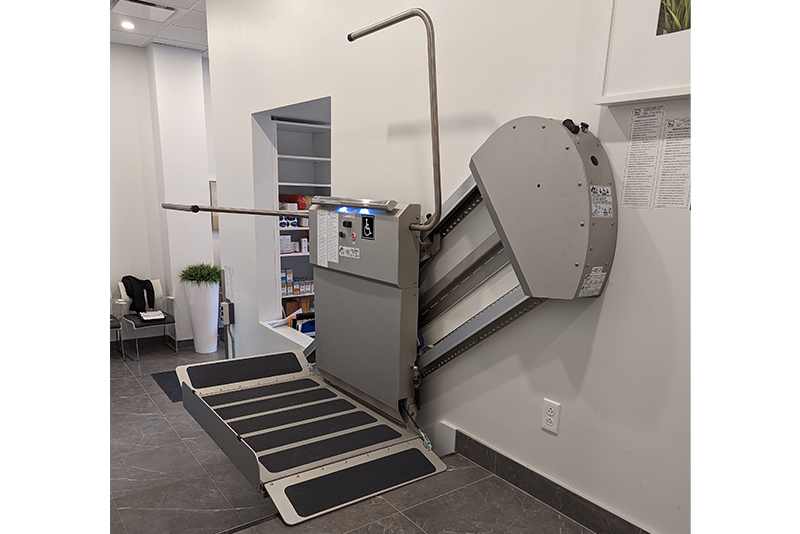

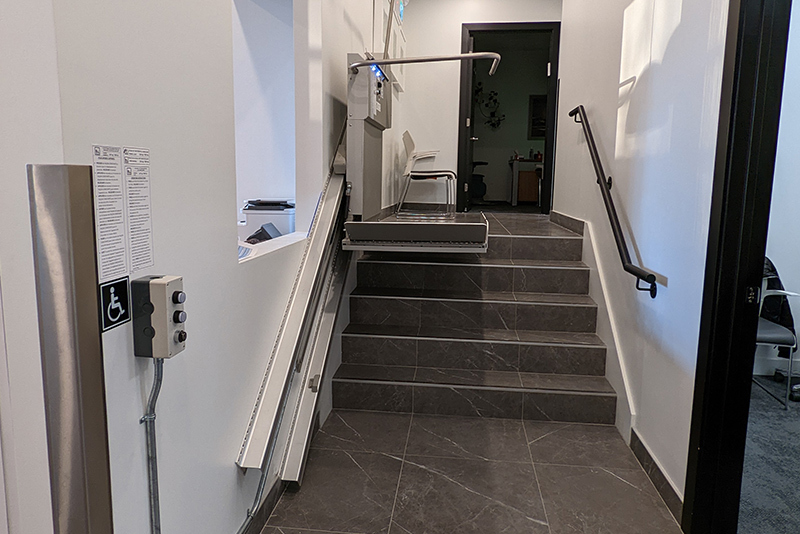

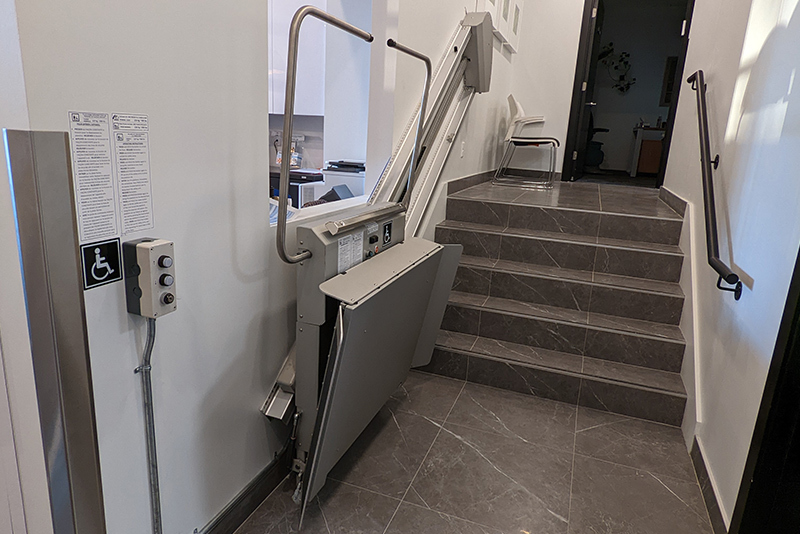

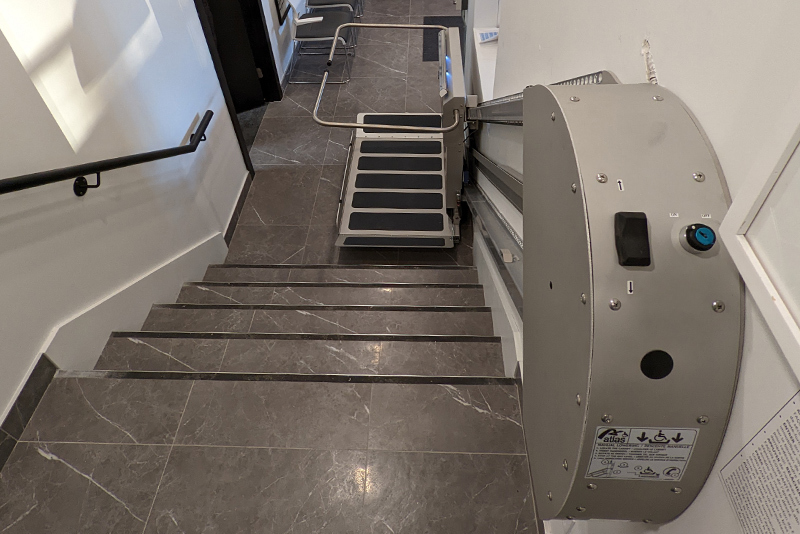

The Titan Incline Platform Lift - Commercial is the ideal solution for making stairs in a commercial building wheelchair accessible. This particular model offers a lifting capacity of 550 pounds (one person in a wheelchair) and includes installation. While built to fulfill code requirements in much of the United States, additional options can be configured to fulfill requirements for your specific locale. To start the process, call our Commercial Incline Platform Lift experts and we will be happy to provide advice and the most ideal solution for your application.
Base pricing includes track, which is cut to the length needed for your staircase, as well as a "straight through" entry/exit platform. Custom platform sizes are available and can be built to your requirements. Safety features and additional options include: Call/send controls with a key lock (post, surface, or flush mount), fold down seat, and handsfree phone.
Give us a call to learn how we can help make your commercial building wheelchair accessible with the Titan Incline Platform Lift.
NOTE: Maximum travel is 200 inches
Product Specs
- Drive Type
Sprocket and Chain Drive - Battery Powered
Yes - Self Installable
No - Basic Installation Included
Yes - Standard Capacity
550 lb - Max Track Length, Standard
16' - Max Track Length, Optional
16' - Track Material
Aluminum - Swivel Seat
No - Flip-Up Seat
Yes - Flip-Up Armrests
No - Constant Pressure Controls
Yes - Footrest Safety Sensor
No - Track Footprint
13" - Call Stations Included
Upper Landing on Drive Column, Bottom has Options - Rail Angle, Min
25° - Rail Angle, Max
50° - Digital Diagnostics Display
No - Key Lock
Yes
| Information | | Please Call For More Information | $0.00 |
|---|
| Cab Entrance/Exit |  | Straight Through | $0.00 |
|---|---|---|---|
| Cab Entrance/Exit |  | 90 Degree | $1,555.59 |
| Platform | | 30" Wide x 40" Long (requires at least a 36" wide stair case) | $0.00 |
|---|---|---|---|
| Platform | | 30" Wide x 44" Long (requires at least a 36" wide stair case) | $0.00 |

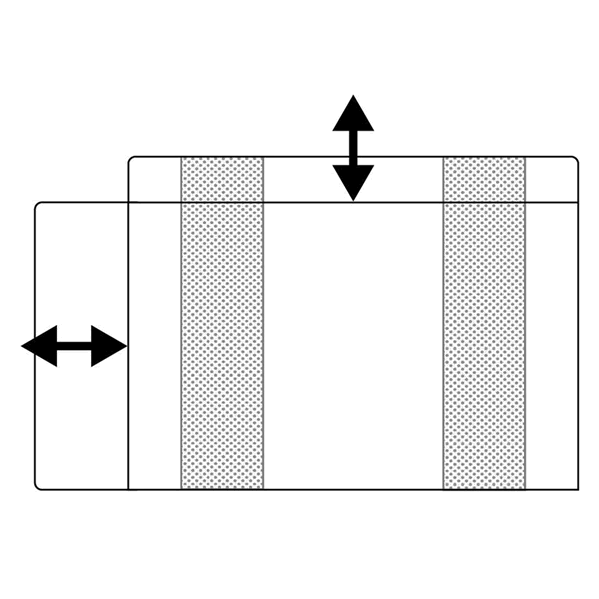

| Platform | | Custom Size (28" to 32" Wide x 38" to 48" Long) | $2,072.73 |
| Custom Platform Dimensions | | Custom Platform Width (28" to 32") | $0.00 |
|---|---|---|---|
| Custom Platform Dimensions | | Custom Platform Length (38" to 48") | $0.00 |
| Orientation (looking UP the staircase) | | Rail On The Left | $0.00 |
|---|---|---|---|
| Orientation (looking UP the staircase) | | Rail On The Right | $0.00 |
| Track Length | | Total Track Length Required (feet and inches or decimal feet) | $0.00 |
|---|
| Mounting Method | | Wall Mounted (Commercial Installation Requires Wood Studs) | $0.00 |
|---|---|---|---|
| Mounting Method | | Non-Wall Mounted (Includes Required Mounting Posts) | $1,795.00 |
| Bottom Landing Call w/Key Lock |  | Post Mount | $0.00 |
|---|---|---|---|
| Bottom Landing Call w/Key Lock |  | Surface Mount | $0.00 |
| Bottom Landing Call w/Key Lock |  | Flush Mount | $0.00 |
| Options | | Fold Down Seat | $929.88 |
|---|---|---|---|
| Options | | Handsfree Phone | $450.00 |
| Options | | Custom Color (Call for Color Availability) | $1,500.00 |
| Installation (Customer must pull required permits.) | | Note: Commercial Wall Mounting REQUIRES Wood Studs | $0.00 |
|---|---|---|---|
| Installation (Customer must pull required permits.) | | Install on Concrete, Steel, or Tile Stair Treads | $300.00 |
| Installation (Customer must pull required permits.) | | Install on Concrete or Concrete Block Walls | $300.00 |
