Get a special offer on this lift. How? Sign up for our Special Offer program.
$4,441.00
$2,099.00
Plus Shipping
click on image
to enlarge
- Warranty
5 years on the motor gear box
2 years on components

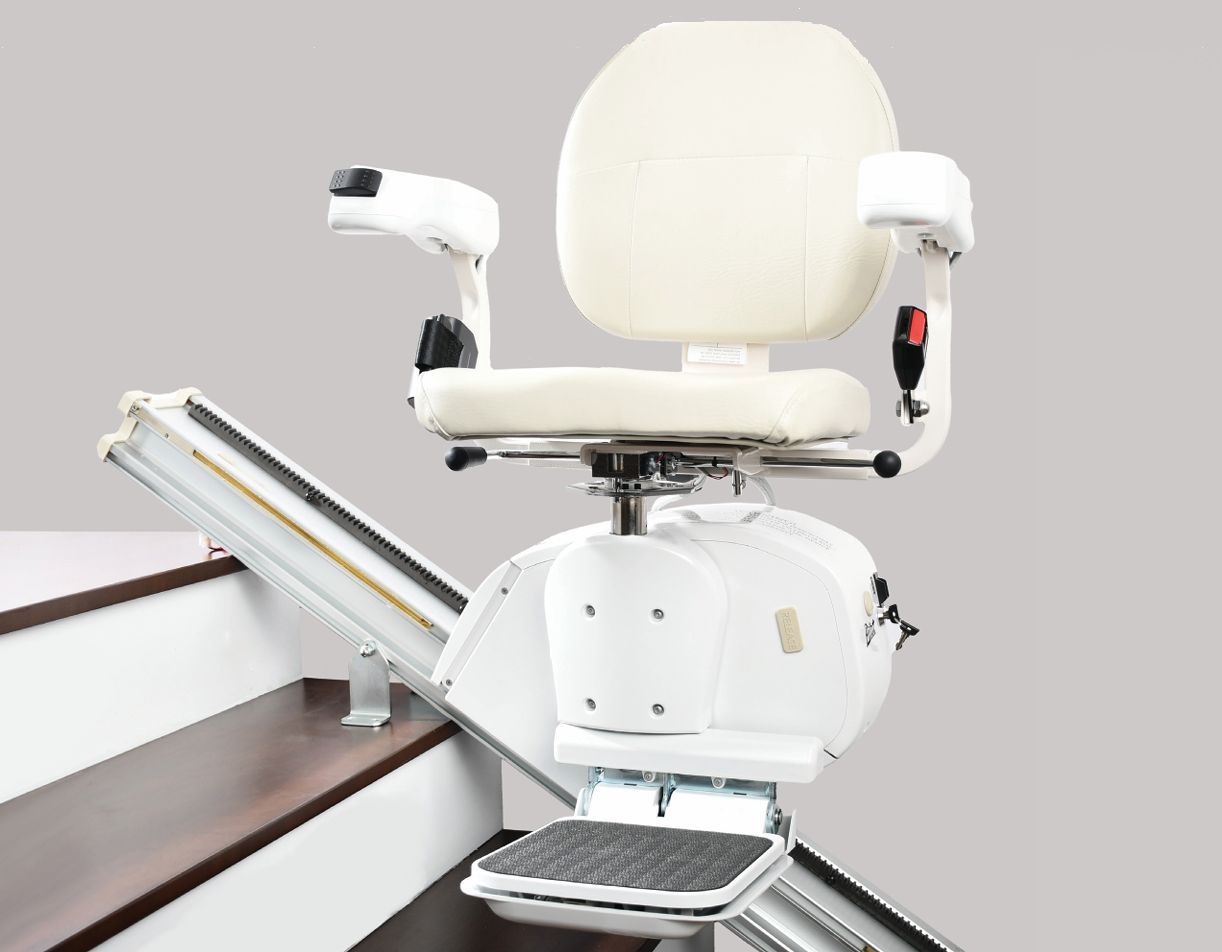

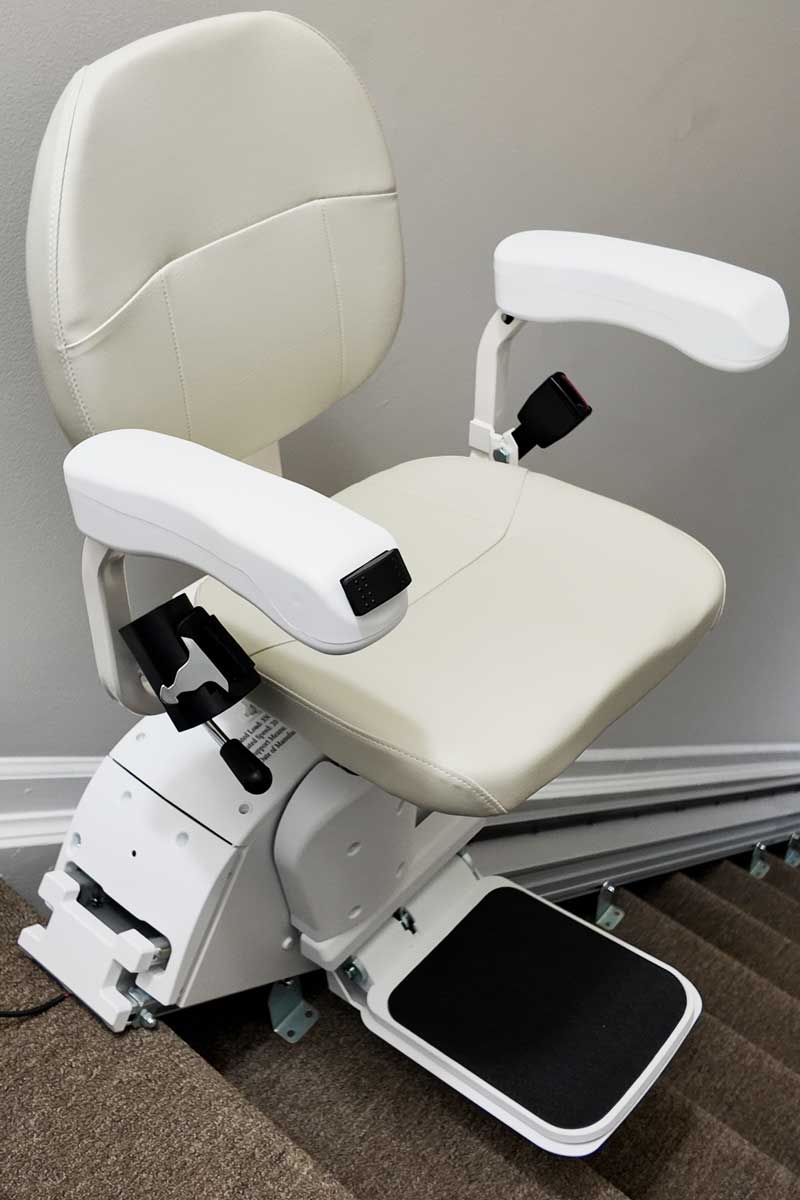

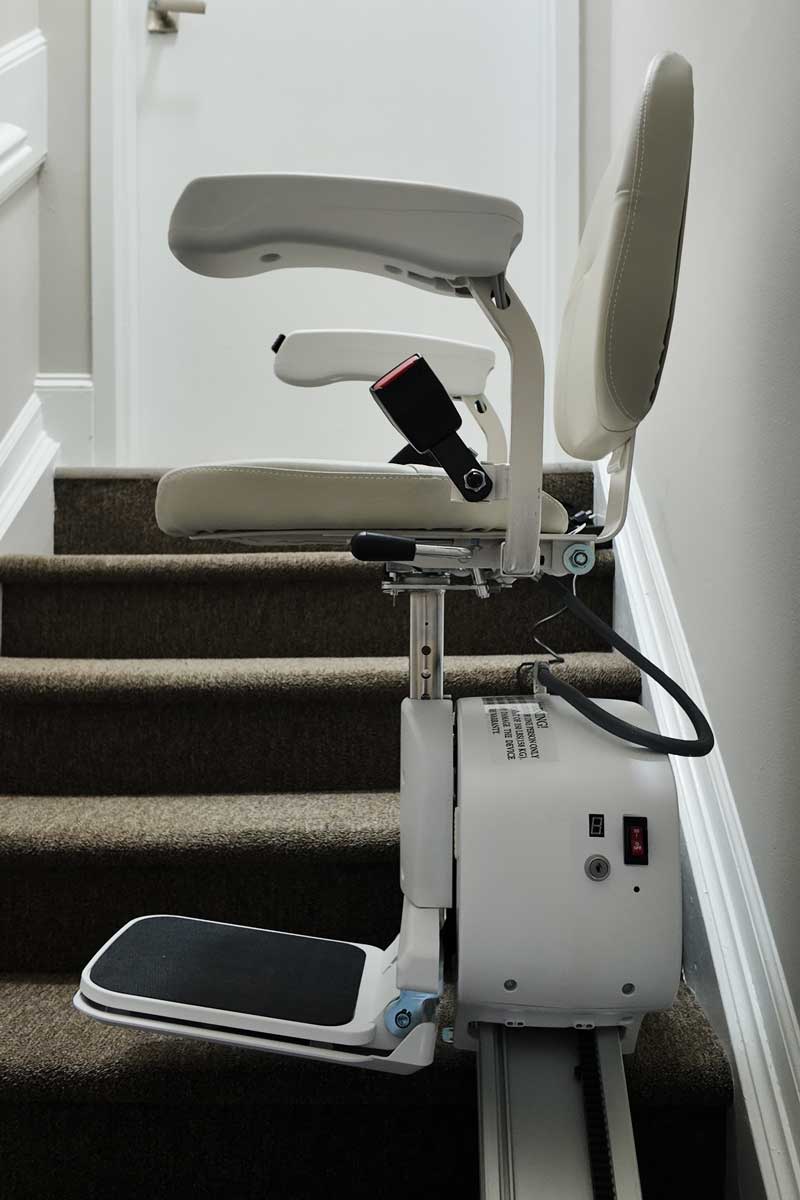

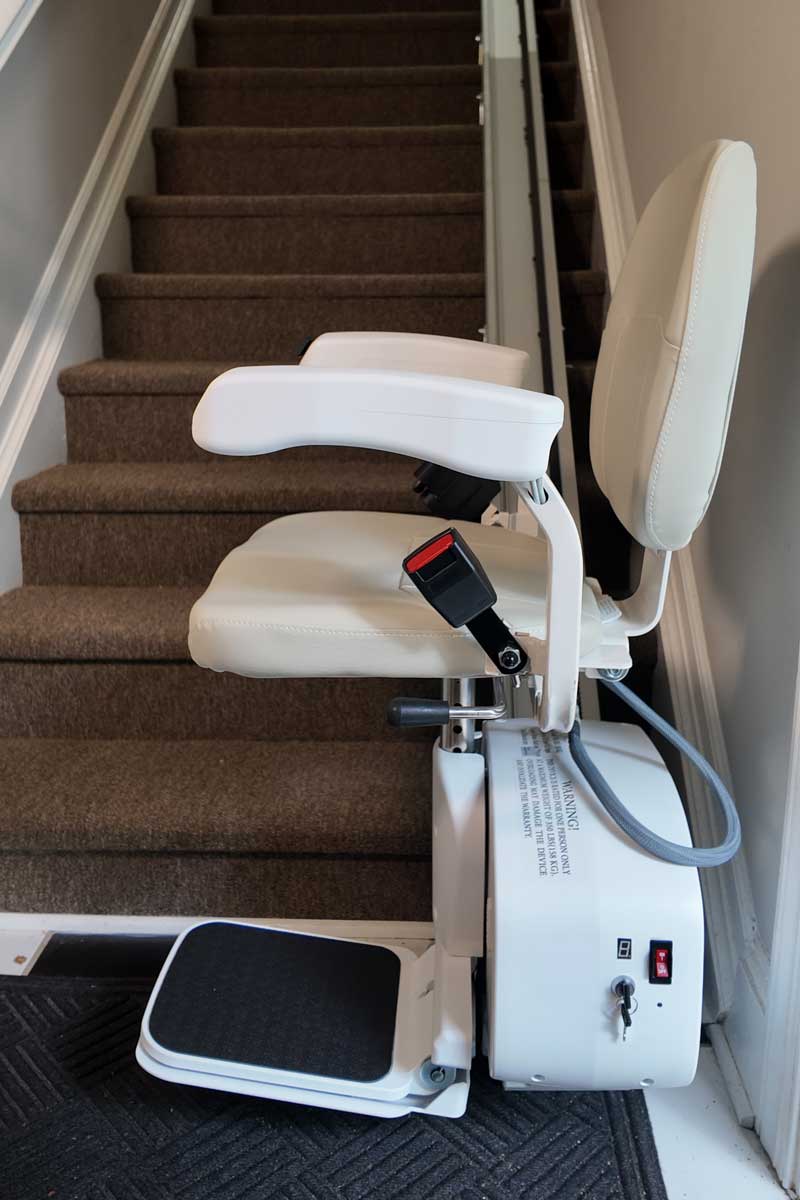

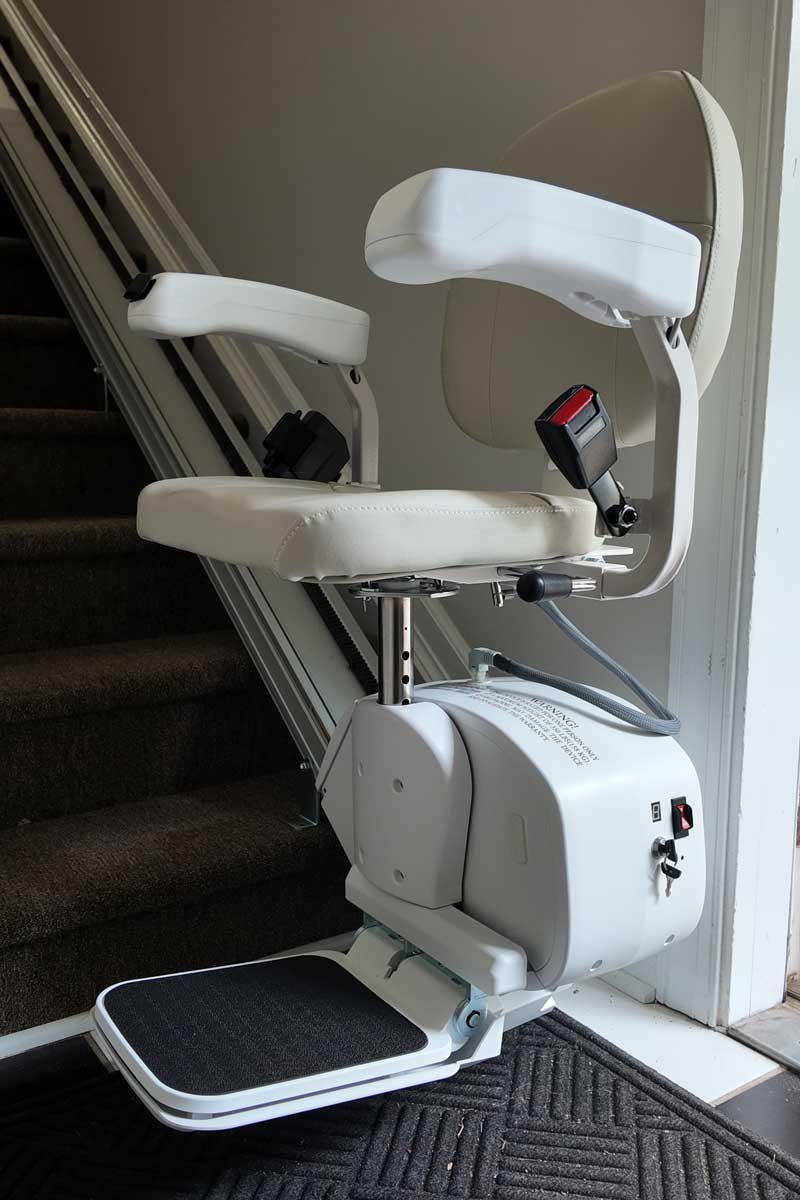

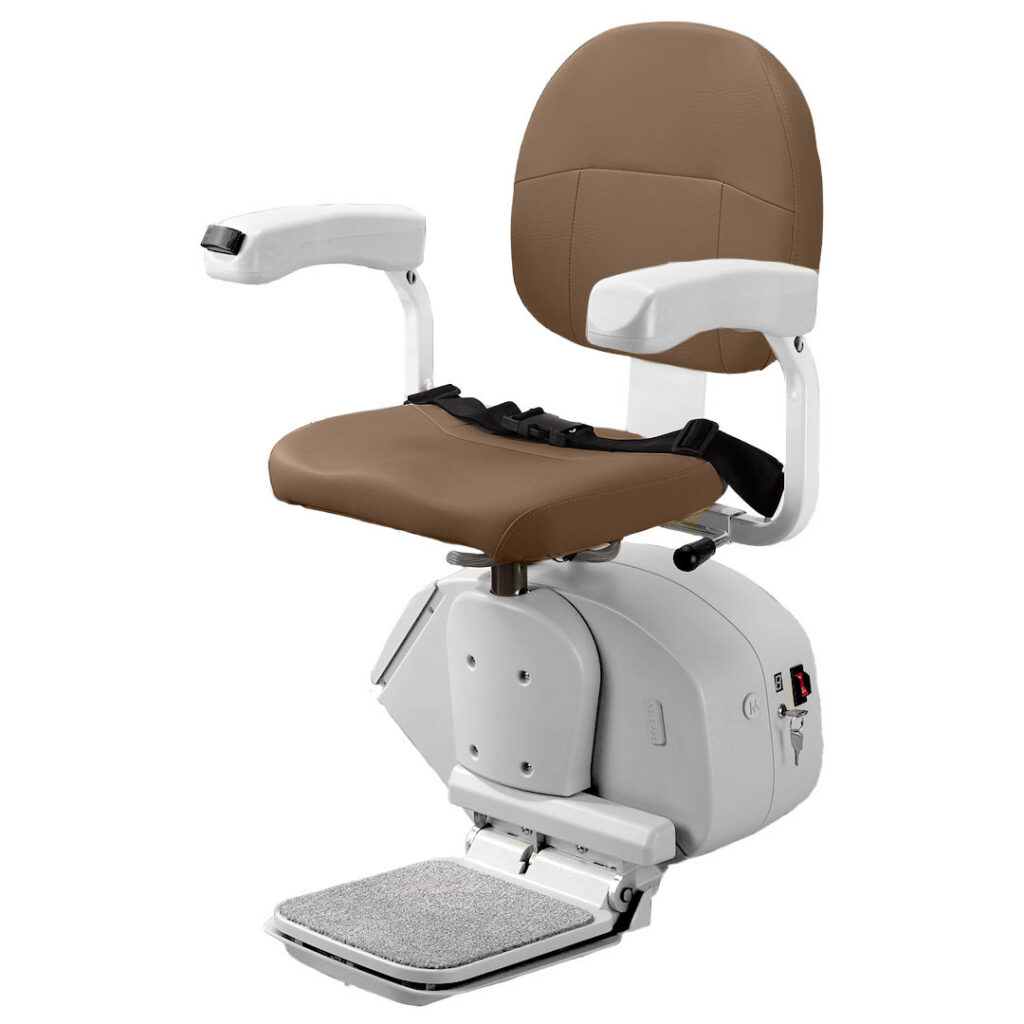

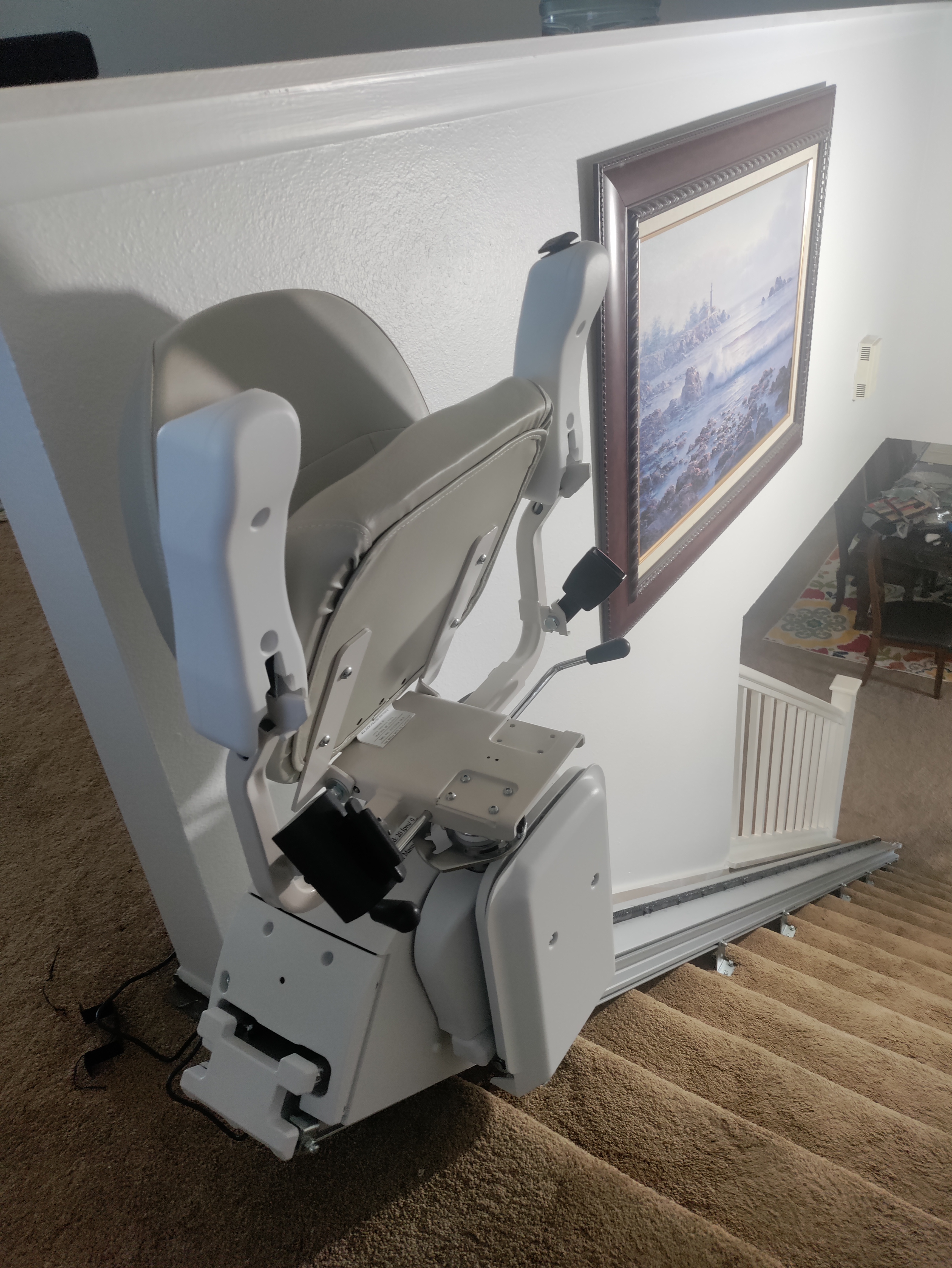

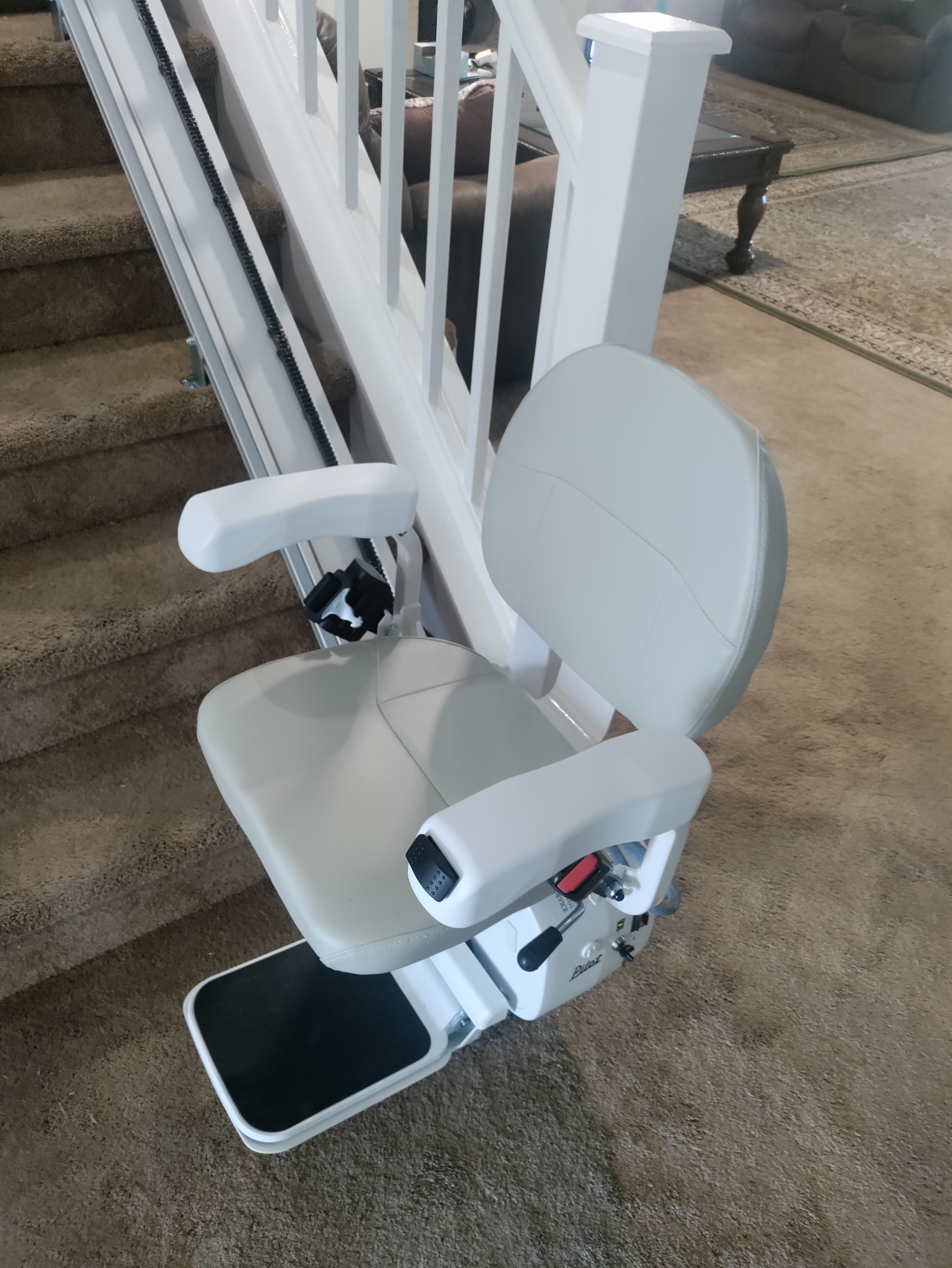

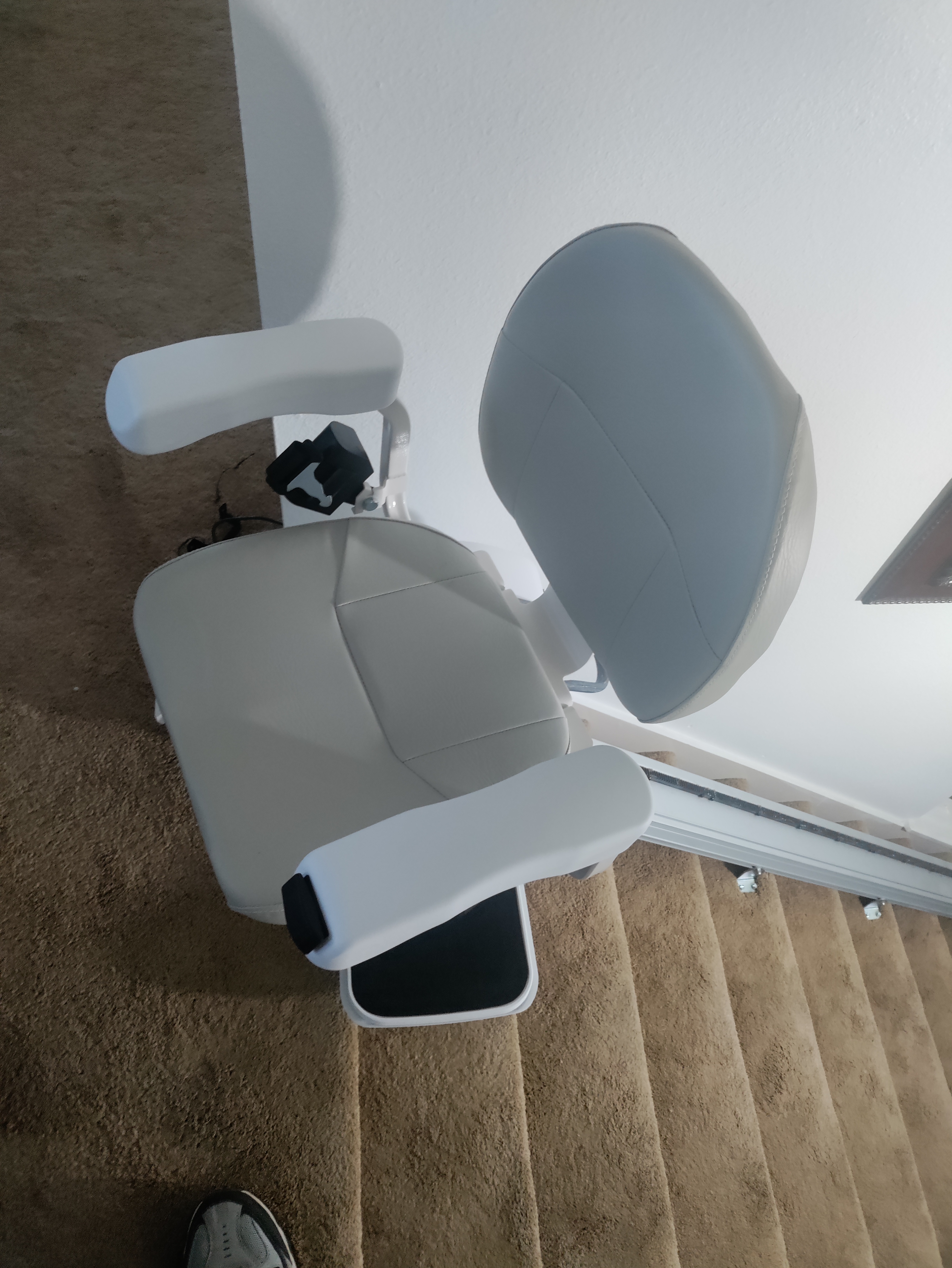

The Crest HD Stair Lift offers exceptional versatility, functionality, an automatic hinged rail, and robust safety. It is a heavy-duty unit with a 350 lb. capacity and its universal design allows left or right-side installation, with adjustable armrest width, seat height, and toggle position. A 2-position swivel seat ensures safe transfers.

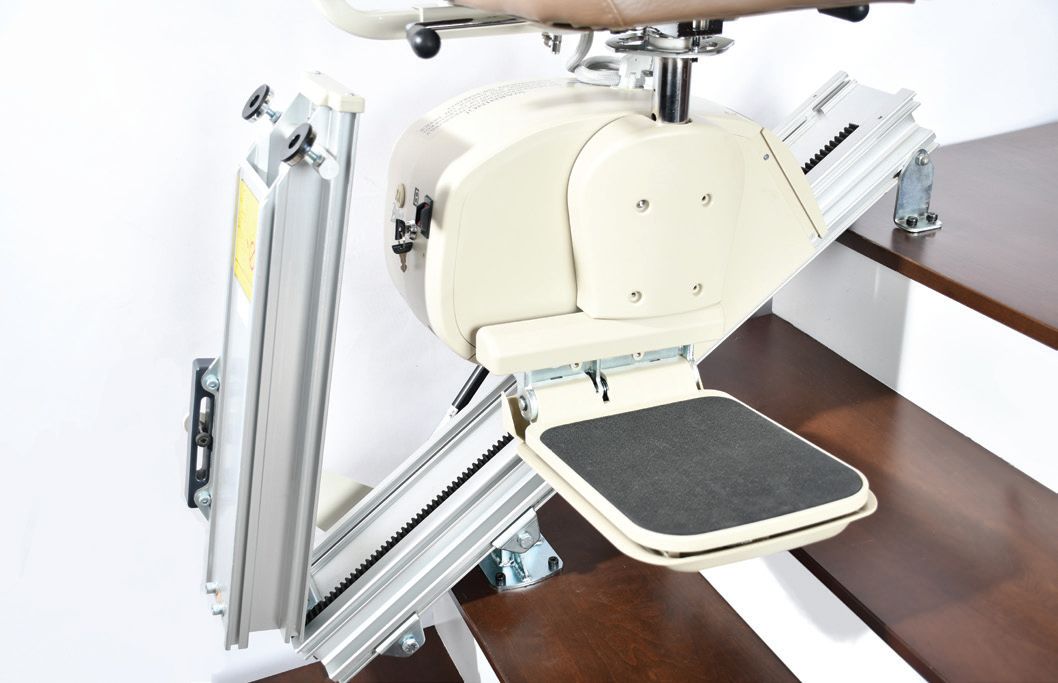

Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
Product Specs
- Drive Type
Rack and Pinion - Battery Powered
Yes - Self Installable
Yes - Basic Installation Included
No - Standard Capacity
350 lb - Max Track Length, Standard
16' - Max Track Length, Optional
32' - Swivel Seat
Yes - Swivel Seat Rotation
90 Degrees at top landing - Flip-Up Seat
Yes - Flip-Up Armrests
Yes - Constant Pressure Controls
Yes - Footrest Safety Sensor
Yes - Seat Width
16" - Seat Depth
16.36" - Unit Footprint, In Use
23" - Unit Footprint, Folded
13" - Call Stations Included
2 Wireless - Seat Width, Max
20" - Rail Angle, Min
25° - Rail Angle, Max
55° - Digital Diagnostics Display
Yes - Key Lock
Yes
| Stair Lift Orientation (Looking Up the Stairs) | | Right | $0.00 |
|---|---|---|---|
| Stair Lift Orientation (Looking Up the Stairs) | | Left | $0.00 |
| Upholstery Color |  | Beige | $0.00 |
|---|---|---|---|
| Upholstery Color |  | Light Brown | $0.00 |
| Upholstery Color |  | Dark Brown | $0.00 |
| Upholstery Color |  | Red | $0.00 |
| Track Length | | Standard 16' Of Track | $0.00 |
|---|---|---|---|
| Track Length | | Additional 8' Section of Track | $384.00 |
| Track Length | | Track Custom Cut to Length | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 1 - Total Staircase Length | $0.00 |
|---|---|---|---|
| Stair Lift Measurements According to Measurement Guide | | Step 2 - Top Landing to Bottom Step | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 3 - Stair Width | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 4 - Available Space at Bottom | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 5 - Height of One Step | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 6 - Length of One Tread | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 7 - One Step Front Edge to Front Edge | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 8 - Available Space at Top | $0.00 |
| Options |  | Hinge Rail | $834.00 |
|---|---|---|---|
| Options | | Power Swivel Seat | $1,476.00 |
| Options | | 6" Extended Indoor Brackets (each) | $9.00 |
| Options | | 8' Charging Cable Extension | $15.00 |
| Options | | Extended Footplate Kit - 2" | $167.00 |
| Options | | Extended Seat Post Kit - 2" | $42.00 |
| Installation | | Self-Install | $0.00 |
|---|---|---|---|
| Installation | | Nationwide Installation Service | $599.00 |
| Installation | | Double Stair Lift Installation Service - Per Stair Lift | $437.50 |
| Installation | | Nationwide Measurement and Installation | $749.00 |
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
|---|---|---|---|
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
| Installation Special Cases | | Additional Charge for Installation in the States of: New York, and Massachusetts | $150.00 |
| Installation Special Cases | | Existing Stair Lift Removal | $499.00 |
| Shipping | | Additional Shipping Charge for Unit with More Than 16' of Track | $154.00 |
|---|---|---|---|
| Shipping | | Shipping to Alaska or Hawaii (Call for Price) | $0.00 |
Customer Reviews
This product currently has no reviews. Would you like to leave one?
